Tattoo Machine History

Have you ever wondered where tattoo machines come from?

28 May 2021

0 comments

The first tattoo machine is said to have been created by Thomas Alva Edison in 1877, although it was not designed specifically for tattooing. This electric pen was part of a complete system for duplicating documents and drawings by hand. Its success in the market did not last long as, in 1872, Christopher Sholes, Charles Glidden and Samuel W. Soulé invented the typewriter, an element that replaced Edison's invention.

hero maquina

Thomas Alva Edison's Electric Pen, USA, 1877
Source:
All That’s Interesting.

Fourteen years later, in 1891, the tattoo artist Samuel O'Reilly brought Edison's invention back to life, made some adjustments to the design and managed to create a new prototype tattooing tool. From then on, and although several improvements have been made since then, this became known as the first electric tattoo machine - and the one that laid the first foundations for the rotary tattoo machines we know today.

Samuel patente

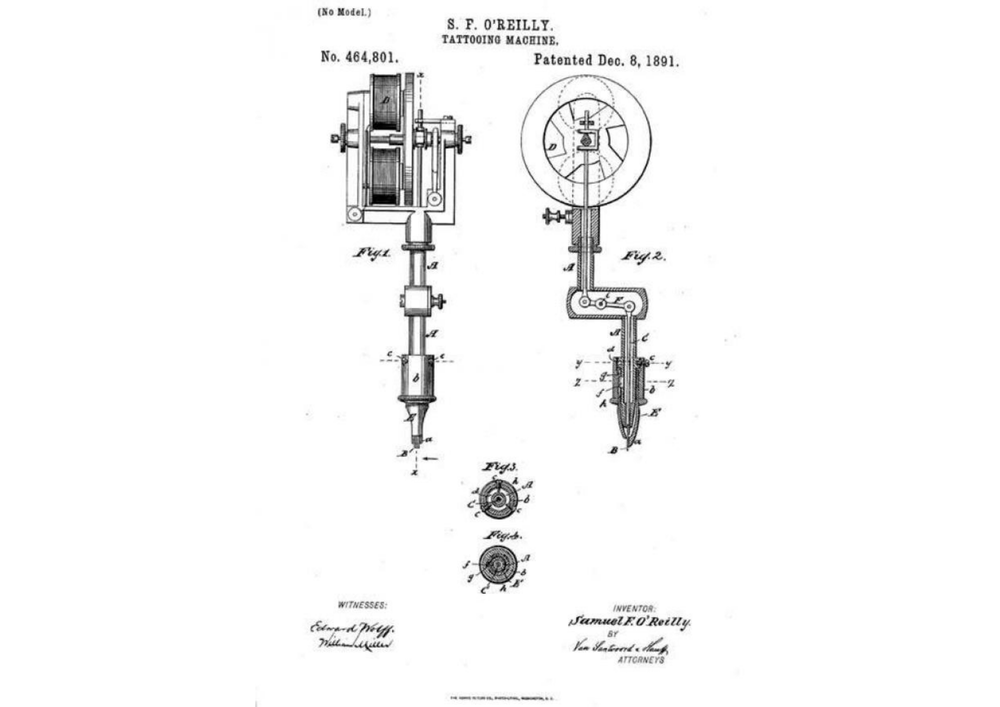

Samuel O'Reilly's tattoo machine patent, USA, 1891
Source: SDP News

Surprisingly, 20 days later, the English tattoo artist Thomas Riley created a new type of tattooing tool that would eventually become the basis for coil tattoo machines. Starting with an electric bell, Riley incorporated an electromagnet, with which he succeeded in designing another type of tattoo machine.

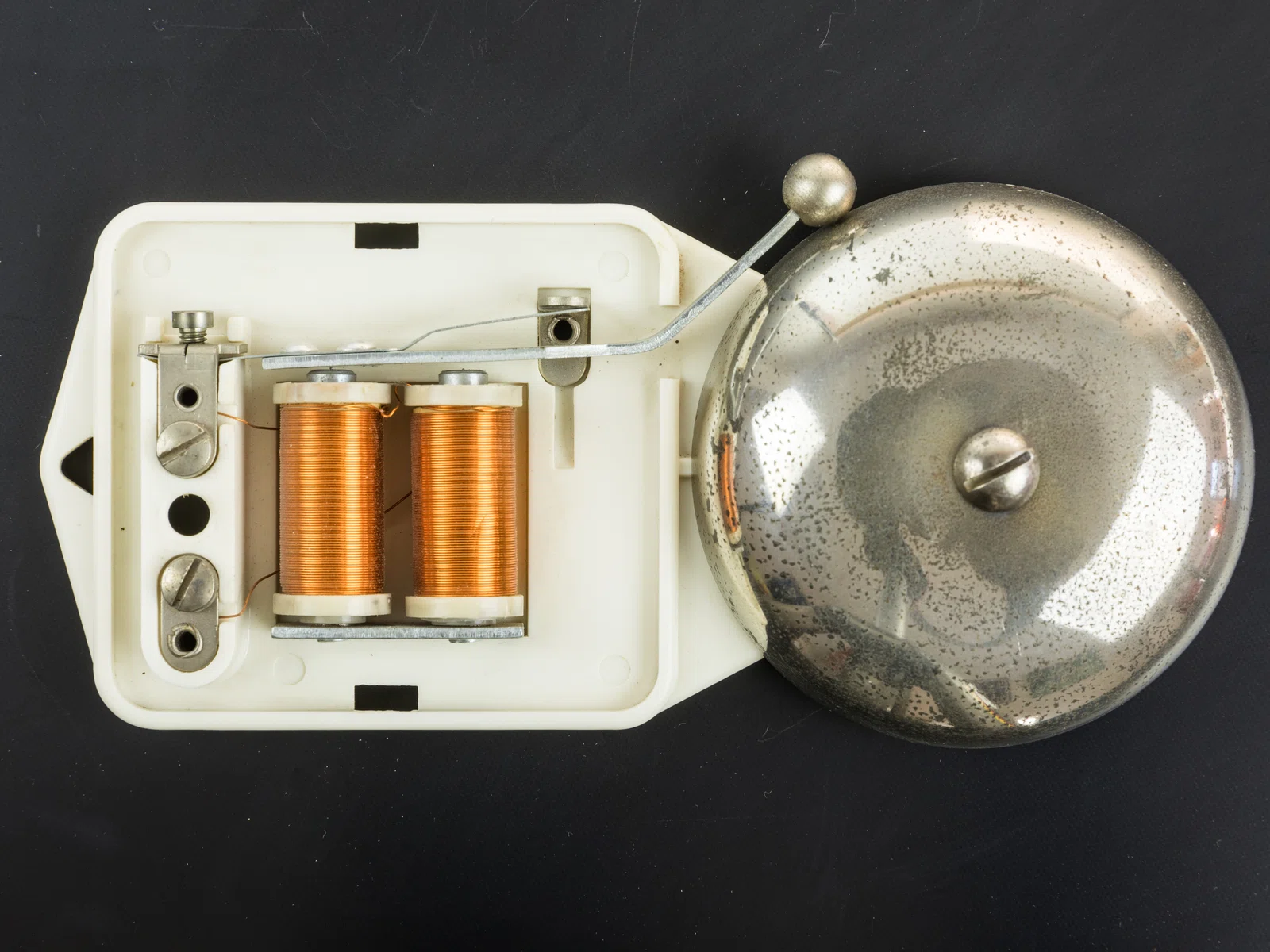

How an electric bell works. Does it ring a bell?
Source: Raimond Spekking / CC BY-SA 4.0 (
Wikimedia.org)

comparación bobinas

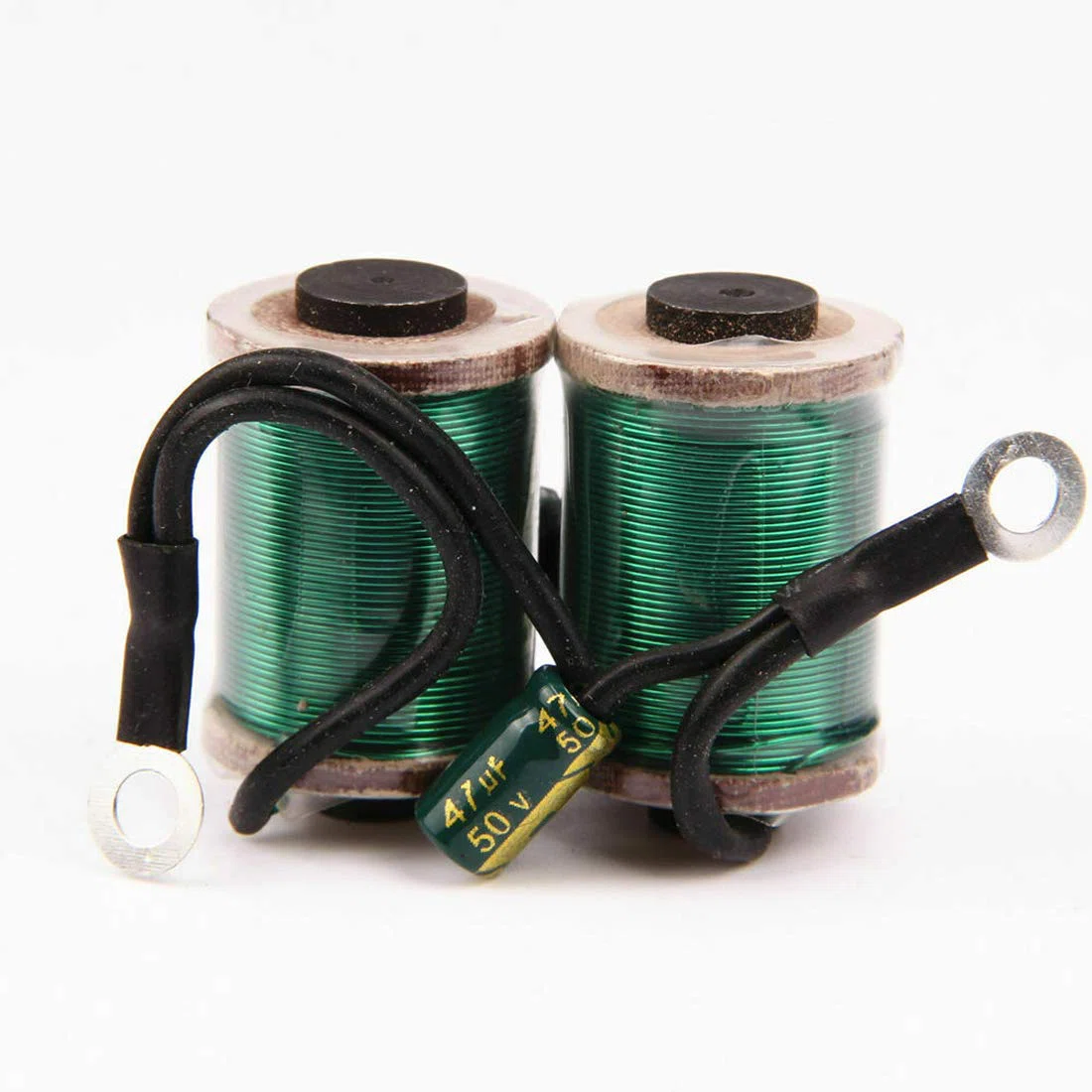

Tattoo machine coils
Source:
Amazon.es

However, it was Alfred Charles South who really created the double reel configuration. He made a design where the coils, placed side by side, were positioned on the side of the machine. The problem with this prototype was that it was too heavy, forcing tattooists to place a support from the ceiling to bear the weight of the tool when tattooing.

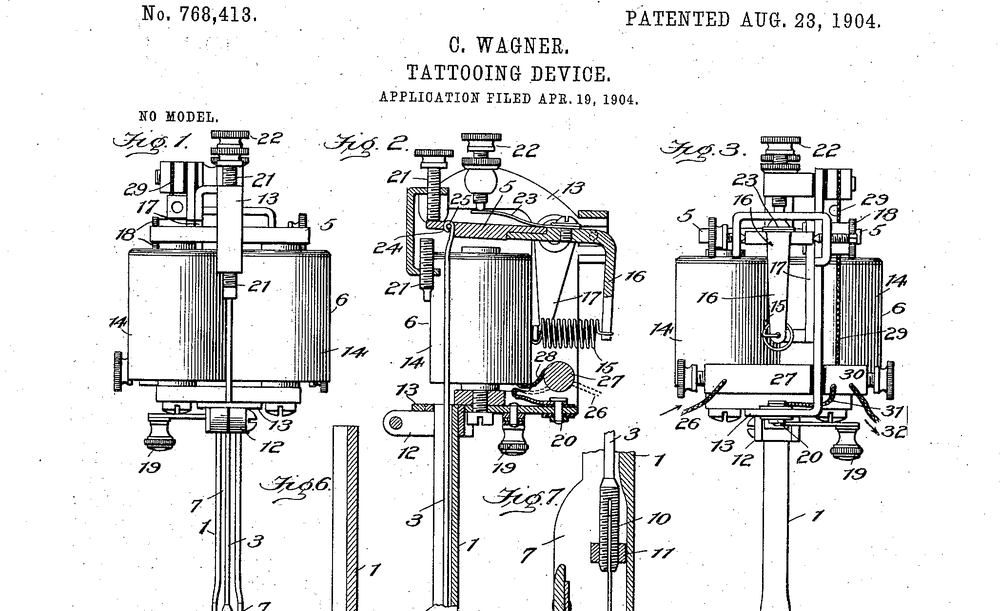

Drawing on the influence of Samuel O'Reilly, in 1904 Charlie Wagner reinvented the design of coil tattoo machines. It is said that Wagner was his apprentice and they became friends. In his design, unlike Charles South, Wagner decided to place the reels in line with the machine's chassis.

Alfred y charles

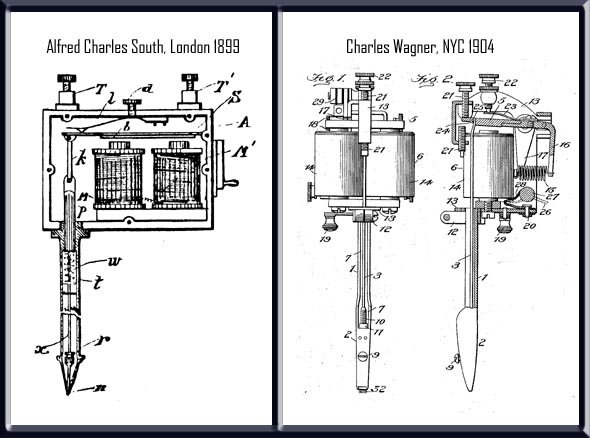

Prototype tattoo machine by Alfred Charles (UK, 1899) and by Charles Wagner (USA, 1904)
Source:
Jamesstreetparlour.com

Years later, in 1920, tattooist Percy Waters designed several prototype tattoo machine frames, many of which are still in use today.

Meanwhile, it was Carol Nightingale who brought the term "adjustable" into the tattoo world. She designed a configurable tattoo machine which, although it was not a great success, led to the creation of other adjustable prototypes which are still on the market today.

Since then, new developments in tattoo machinery have been the order of the day, although one of the latest is the battery-powered tattoo machine: one which does not require a power supply to operate.

máquina-tatuaje

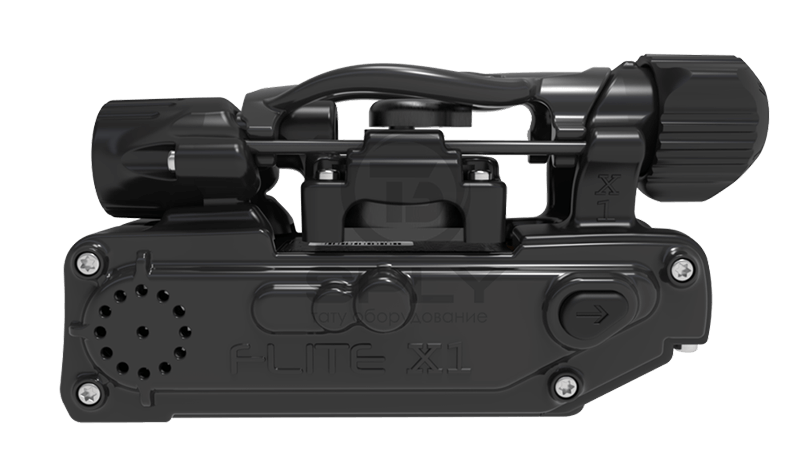

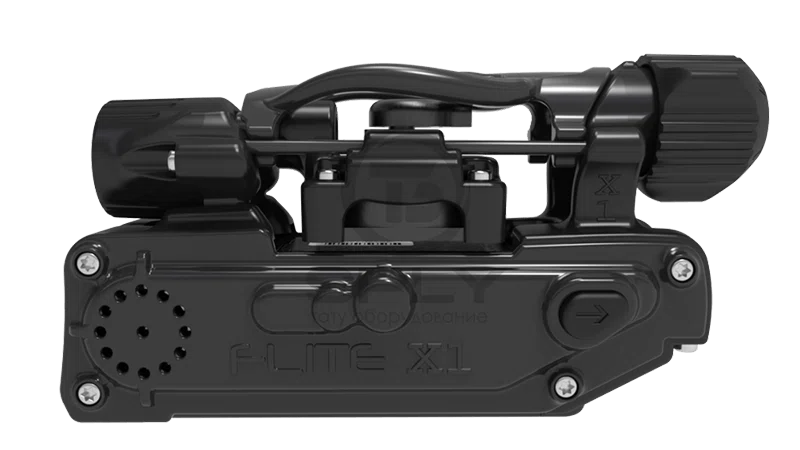

Flite X1 / Inkjecta battery machine
Source:
Inkjecta.com

Finally, the latest innovation in battery-powered tattoo machines is the pen tattoo machine. Cheyenne was one of the first brands to launch this type of device and it brought about a big change in the world of tattooing.

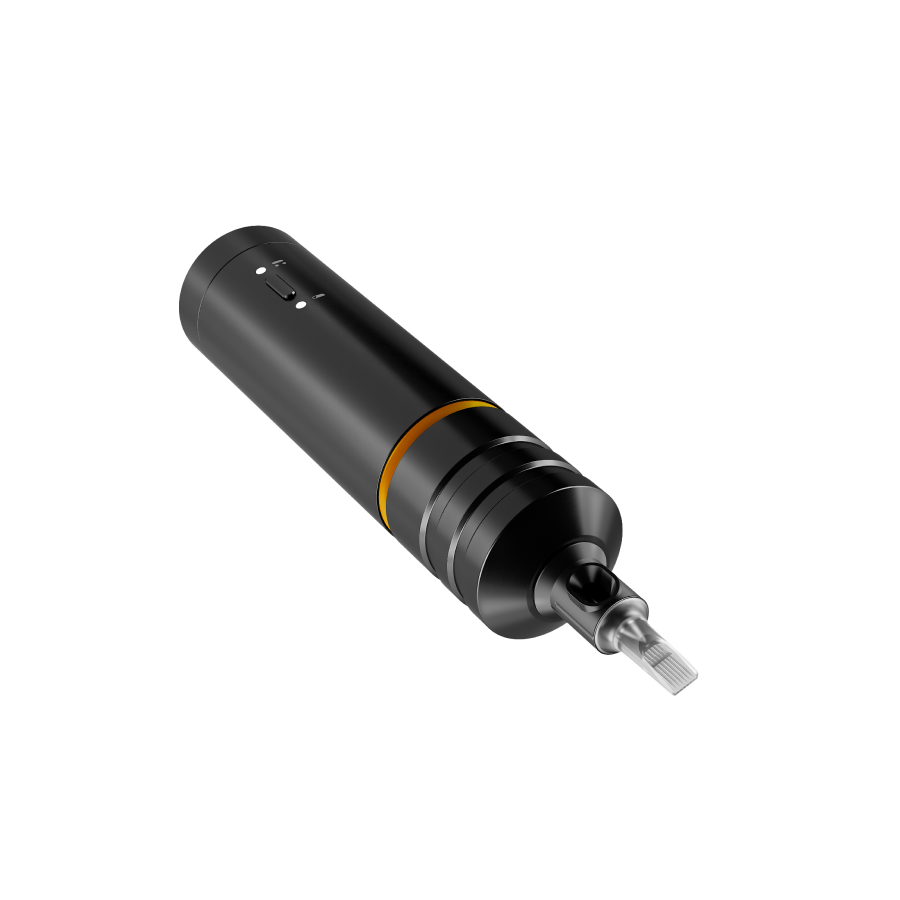

Sol Nova Unlimited pen machine
Source:
Cheyennetattoo.com

Now that you know how we got to the tattoo machines of today - what do you think will be the next big thing?
